Galletti UTN Duct

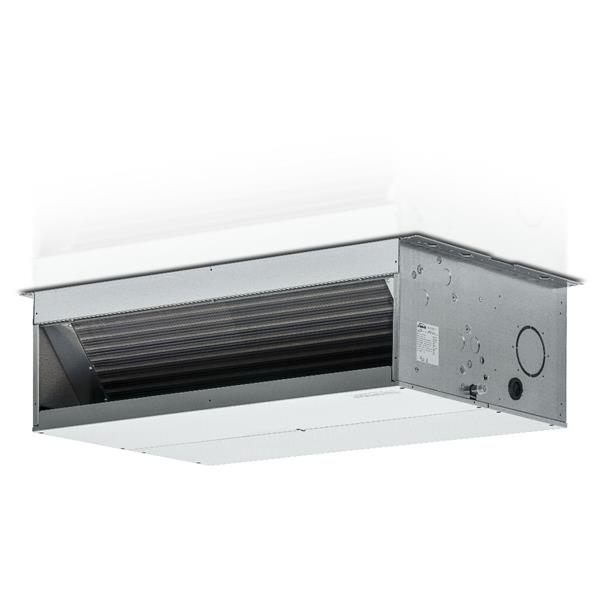

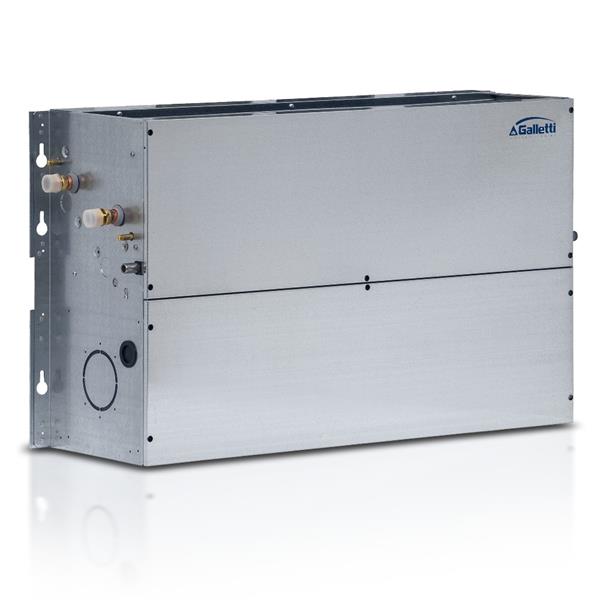

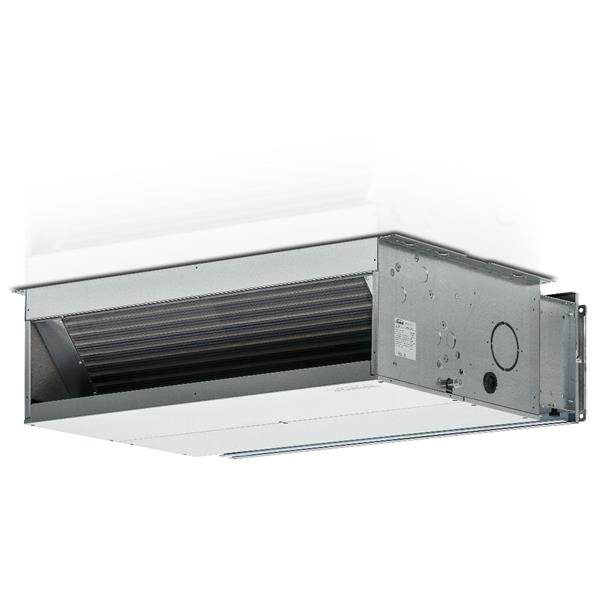

Galletti UTN Duct View Large Image
HGUTN

Galletti UTN Duct Unit:

Fan coil units with High-head thermal ventilating units

Flexibility of installation to respond to every need.
The UTN range of thermal ventilating units has been developed for air conditioning rooms where the use of ducted hydronic indoor units capable of assuring available heads of up to 180 Pa and cooling capacities of 3 to 23 kW is required. The units are characterised by a highflexibility of installation, as they can in fact be positioned either vertically or horizontally and the orientation of the air intake in the rear or front part of the unit itself can be modified by simply moving the inspection panel. All units have a standard configuration for the intake of fresh air and slots for rapidly fixing them to the wall or ceiling.
Their reduced height (280 mm up to size 16 and 350 mm for larger sizes) enables them to be accommodated in normal false ceiling and the availability of a wide range of plumbing and ventilation accessories makes it easy to integrate them into air conditioning systems. The units are available in standard and high-efficiency models, depending on the finned block exchanger used, so that they can be better adapted to the needs of the room to be air-conditioned

  • Compact dimensions (height 280 mm up to size 16 and 350 mm for larger sizes)
  • Vertical and horizontal installation
  • Wide range of available accessories for simple
  • integration into the system
  • Available head up to 180 Pa
  • High flexibility of installation
  • Can be integrated into the ERGO

AVAILABLE VERSIONS:

  • UTN Thermal ventilating unit suitable for 2-pipe systems
  • UTN DF Thermal ventilating unit suitable for 4-pipe systems (2 heat exchangers)
  • UTN DP The version with double panelling is made with pre-painted sheet steel insulated with class 0 fire-resistant rockwool.
