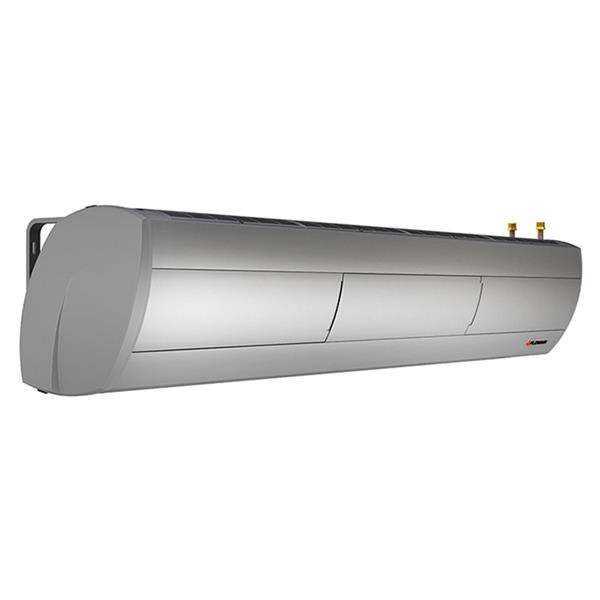

Flowair Elis A Air Curtain

No Price Available

Code HELISA

Description

ELiS A air curtain ensures thermal protection of a room. It generates an air barrier in the entire door opening space. It prevents the inflow of cold air during the winter and the inflow of warm air into the air-conditioned rooms during the summer.

• Adjustable air outlet enables the user to set a suitable angle of the air stream.
• Fans made of light and durable plastic ensure silent operation of the unit.
• Advanced control system make connection of the unit to the intelligent BMS possible.
• ELiS A is available in three lengths: 1 m, 1.5 m and 2 m, three versions: cold (without heating), water (with water heat exchanger), electric (with electric heaters) and two colours: silver (RAL 9006) or white (RAL 9010).

Application

Modern design of the curtain makes it suitable for representative rooms like stores, restaurants, exhibition halls etc



Control System

Basic operation of the air curtain is ensured by built-in connection terminal. Advanced external DRV control system enables communication with BMS and selection of operation mode.



Starting of the curtain occurs when the door is opened, just after the transmission of the signal from a door contact (or thermostat) to the control system. Thanks to 3-step fans it is possible to set the efficiency of the unit. Setting a desired speed on a TS fan speed regulator with thermostat it is possible to adjust the air stream to the conditions in the door opening. For curtains with water heat exchanger the control system enables the control of two or three-way valve. Through communication with the BMS it is possible for the unit to cooperate with other systems in the building.

• 3-step regulation of air flow stream,
• Control of operation of several units by a single controller by daisy chaining
• Possibility to operate with BMS system

Brochures

• ELiS A Sales Brochure(1.2mb)

• ELiS A Operation Manual(2.1mb)

• Flowair Air Curtains(1.4mb)
