MAXA HWA1-A 106kW-349kW

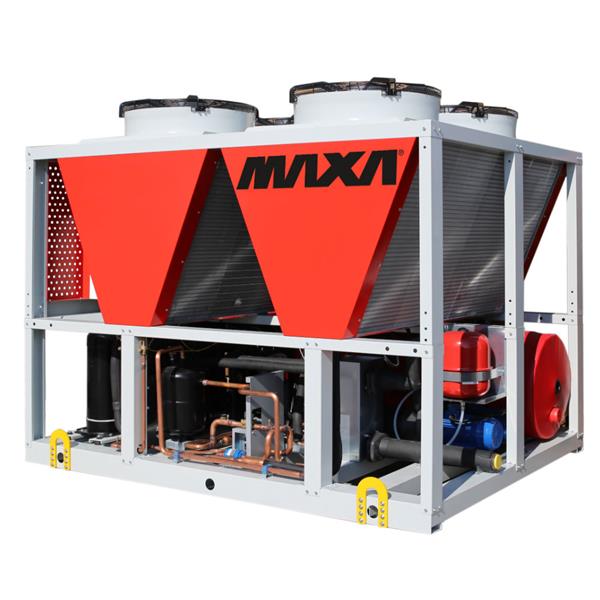

MAXA HWA1-A 106kW-349kW View Large Image
HMAXAHWA1_A_106kW_349kW

HWA1-A 02106÷04349

106 kW÷349

Air-Cooled liquid chiller for outdoor installation

VERSIONS

  • HWA1-A Cooling only
  • HWA1-A/DS Cooling only with desuperheater
  • HWA1-A/SL Silenced version
  • HWA1-A/SSL Super silenced version
  • HWA1-A/C Ducted version (with ZA+ accessory)
  • HWA1-A/PS One pump, low head pressure version
  • HWA1-A/PSAP One pump, high head pressure version
  • HWA1-A/PD Double pump, low head pressure version
  • HWA1-A/PDAP Double pump, high head pressure version
  • HWA1-A/PS/SI Low head pressure pump version+storage tank
  • HWA1-A/PSAP/SI High head pressure pump version+storage tank
  • HWA1-A/PD/SI Low head pressure double pump version+storage tank
  • HWA1-A/PDAP/SI High head pressure double pump version+storage tank
  • HWA1-A/BT BT version (for low water temperature)

COMPRESSOR
Hermetic scroll complete with internal thermal protection.The compressor is isolated from the structure by interposition of special rubber mountings. The mobile spiral is driven by an electric motor 2-pole (2900 rpm) cooled by the inlet refrigerant, the starter is directed. All compressors have full charge of oil polyester, suitable for use with refrigerant R410A. An electrical heater, located on the crankcase, is automatically activated when the unit is switch off in order to prevent the mixing of oil in the refrigerant. The control of cooling power is achieved through steps of parzialization in number equal to the number of compressors installed. When connecting in tandem there is an oil equalizing line with a level indicator.

CARPENTRY
Suitable for outdoor installation.

USER (SIDE) HEAT EXCHANGER
AISI 304 steel braze-welded plate exchanger, insulated with Black closed-cell flexible elastomeric foam (FEF) coupled with a 3 mm layer of reticulated foam in PE and an exterior embossed finishing PE film in aluminium in colour.
Maximum operating pressure exchanger: 15 bar on the water side and 45 bar on the refrigerant side.

SOURCE (SIDE) HEAT EXCHANGER AIR
Full-aluminium coil microchannel type. Coil structure made with an open-angle V-geometry layout.

FAN SECTION
Ventilation system composed by 800mm axial electric fans, protected to IP54, with external rotor and plastic-coated aluminium blades. Housed in aerodynamic hoods complete with safety grille. Brushless electronically commutated electrical motor and incorporated thermal protection. Continuous adjustment of fan rotation speed.

REFRIGERANT CIRCUIT
One or two independent refrigeration circuits made of copper, brazed and factory-assembled,

ELECTRICAL PANEL
It is completely manufactured and wired in accordance with EN60204.



PLEASE DOWNLOAD DATA SHEET FOR FULL TECHNICAL DETAILS:
