ICI Caldaie TNOX.e EN MTHW (7000-17000)

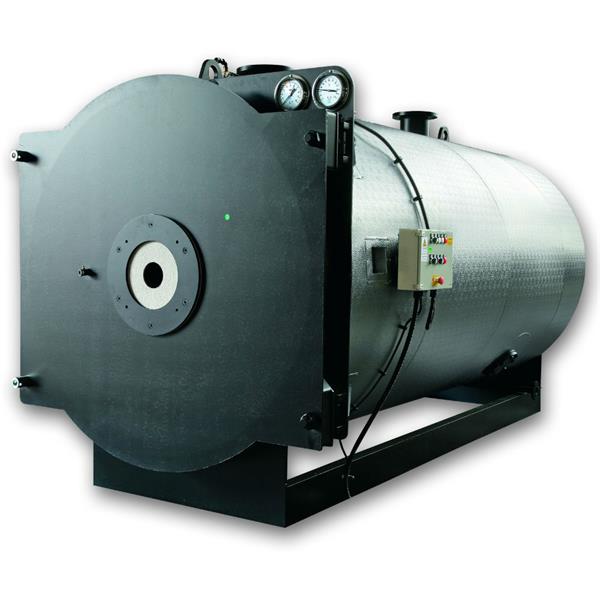

ICI Caldaie TNOX.e EN MTHW (7000-17000) View Large Image

TNOX.e EN (7000-17000)

Three pass, wetback, boiler suitable for liquid or gaseous fuel pressurized combustion, intended for heating systems or with power ranging between 7000 and

17000 kW and work temperatures between 60 and 100 °C. Designed for 110°C maximum temperature (available for 10 bar designed pressure). In compliance with EN 303 European norm and has a CE label according to 2009/142/CE Gas Directive.

  • P265GH UNI EN 10028/2 and P275NH UNI EN 10028/3 quality steel boiler body welded and tested with approved methods
  • Horizontal, single pass flame combustion chamber, with possible corrugated section.
  • Wetback combustion supported and connected to a tube of 500 mm diameter with manhole facility.
  • Tube plates with drilled holes and then subsequently re-bored for smoke tube welded and expanded; the tube plate front the reverse chamber is completely flanged towards the combustion chamber, with butt welds rather than T-Butt welds.
  • Plate containment with flanged PN 16 or PN 40 EN 1092-1 connections for equipment operation; equipped with man-hole, and head-hole, and lifting eye bolts.
  • P235GH UNI EN 10216/2 smoke ducts, thickness 3.2mm, expanded and welded into the tube sheet, without helical turbulators
  • Front smoke box made from steel sheet, thermally insulated with refractory materials with high aluminium content, equipped with two flat separated doors, lined in ceramic fibre and rotating on a double-jointed hinges; complete with refractory cone and drilled plate for burner insertion
  • rear smoke box made from steel sheet, thermally insulated with refractory materials
  • With a high aluminium content equipped with two flat separated doors, equipped with cleaning hatch, chimney connection, buffer for access to the combustion chamber, light flame with guillotine closing
  • Support built form carbon steel sections able to support the entire unit.
  • Embossed metal sheet upper walkway for accessories service, parts located above the boiler
  • High density, mineral wool mattress, 80 mm thickness thermal insulation, with round embossed aluminium case.
  • Accessories equipment needed for automatic operation with mechanical and hydraulic assembly for all equipment.
  • Electrical wiring converging to a single centralized control panel, having silicone insulated wires inserted in PVC protective sheaths all subjected to final functionality test
