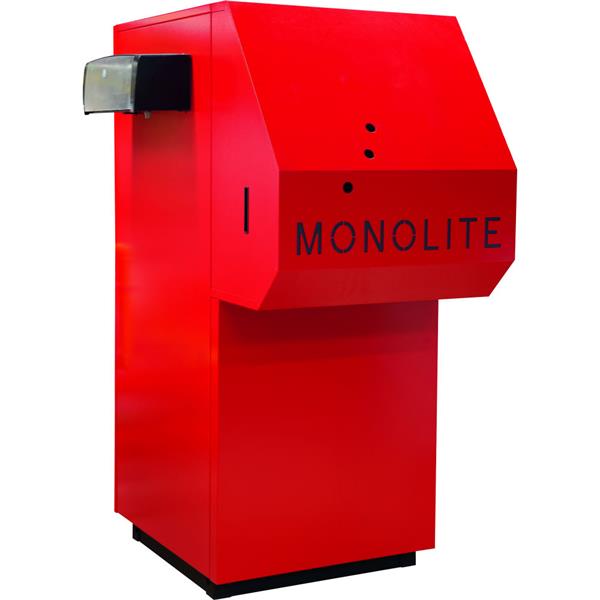

ICI Caldaie MONOLITE JB View Large Image

The Monolite JB AISI 316 Ti stainless steel, passing flame combustion chamber, vertical heat exchanger, condensation MONOLITE JB Boiler is able to produce hot water with a maximum temperature of 100 °C. Connectible to pressure air jet burner for gas fuel operation In compliance with directives 90 /396/CEE (gas) - CE 311/06 (efficiency) label, 89 /336/CEE (electromagnetic compatibility), 72/23/CEE (low voltage).

  • Frame manufactured out of steel vertical profile structure, complete with floor support.
  • Large cylindrical combustion chamber manufactured out of AISI 316 Ti stainless steel, MIG pulse welded, able to withstand acid condensate attack.
  • AISI 316 Ti anti-acid stainless steel, vertical heat exchange surfaces, TIG welded, grafted perpendicularly to the combustion chamber, consisting of stainless steel plates printed with special conformity specifications in order to increase heat exchange surface, and facilitate condensate droplet formation, allowing adequate drainage. Heat exchange surface vertical arrangement also facilitates condensate drainage, ensuring an effective plate self-cleaning function.
  • Welding carried out with TIG method, method which does not require weld material, and therefore guarantees stainless steel main mechanical characteristics, without sacrificing corrosion resistance to acid condensation.
  • Flanged supply connection and two system return connections for boiler differential temperature input and ensure minimum possible temperature in lowest point of the condensation curve and then take maximum advantage from the condensation process even in the presence of medium-high temperature returns.
  • Smoke chamber able to collect resulted condensate and discharge it through a water trap connected to a neutralizer (where provided) to the domestic water drainage system.
  • High water content and low thermal load.
  • Heat dispersion surface insulation with thick glass wool mattress, protected with steel varnished panels that can be easily removed
  • Front door with reversible steel sheet opening thermally insulated with ceramic fibre.
