B Press Carbon Steel: Unique O-Ring Design

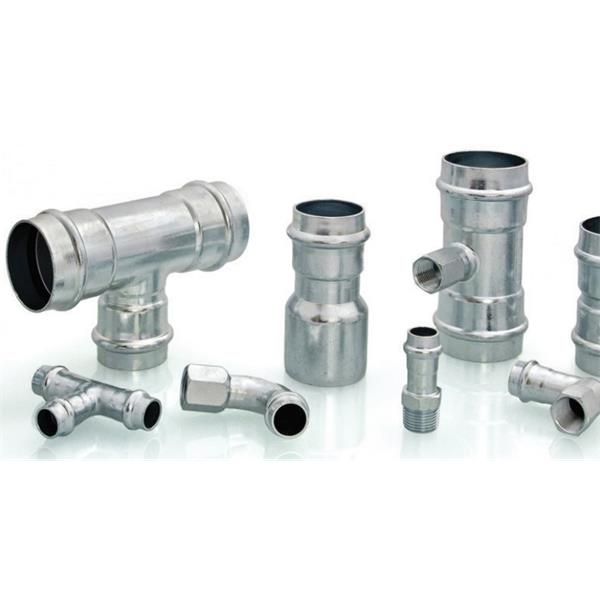

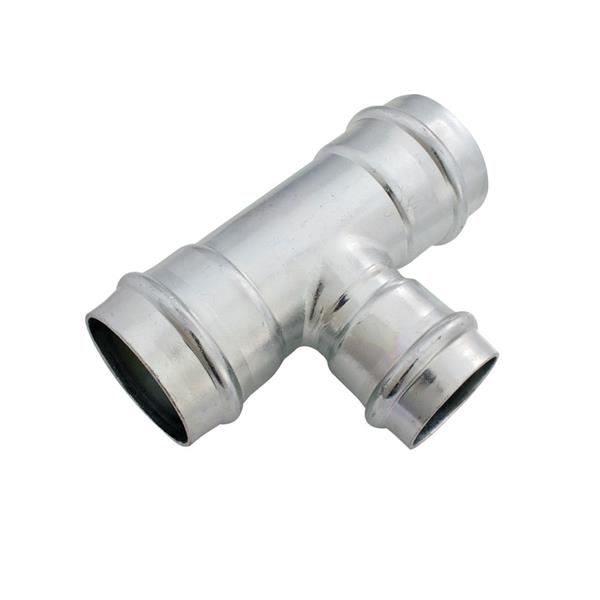

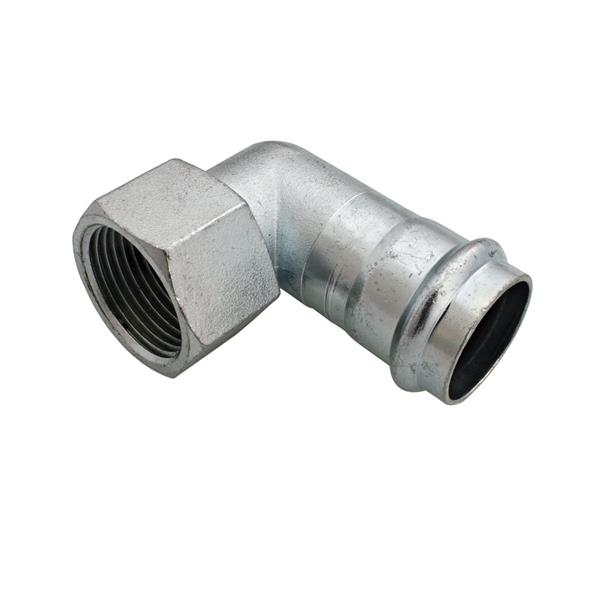

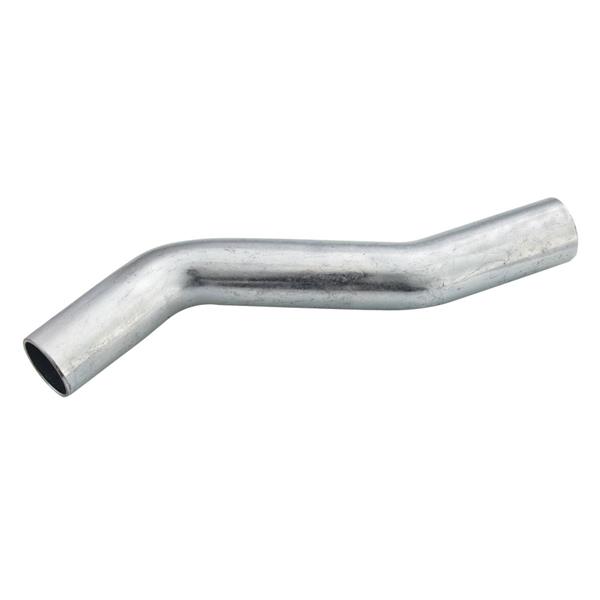

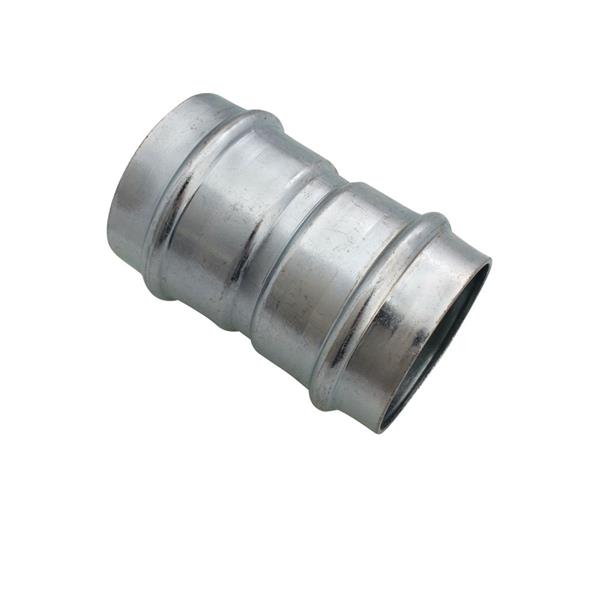

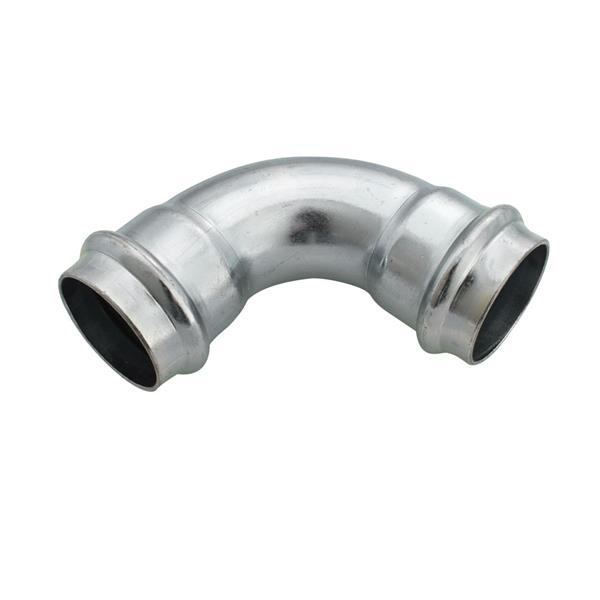

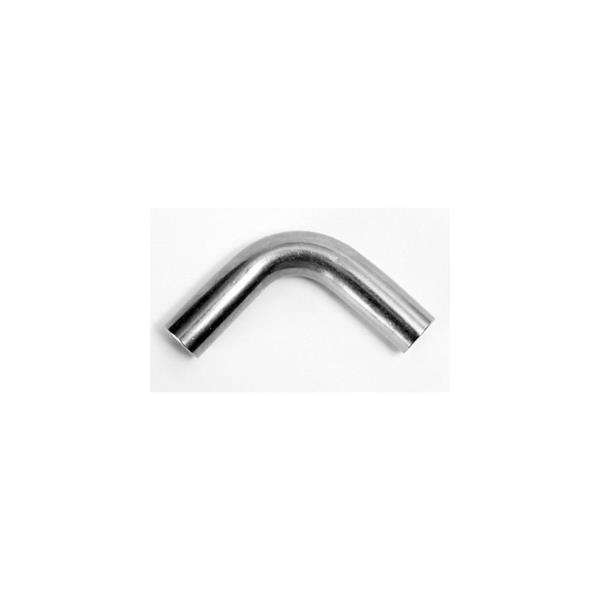

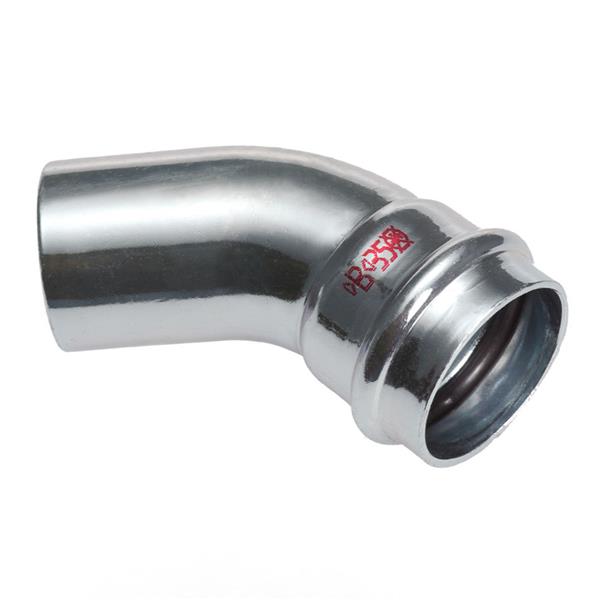

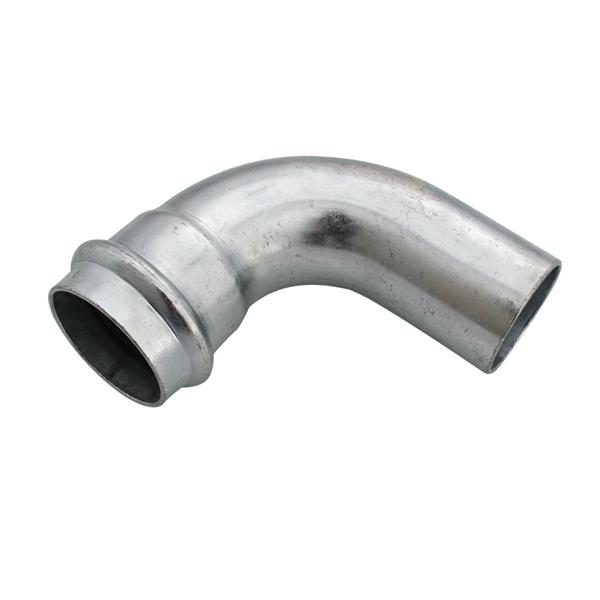

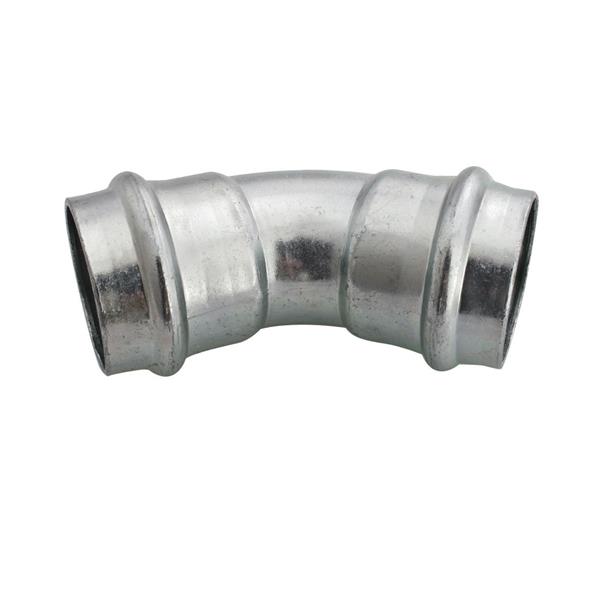

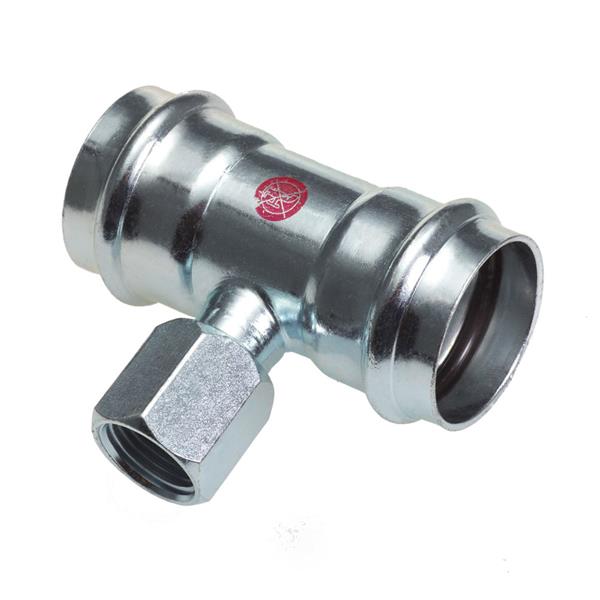

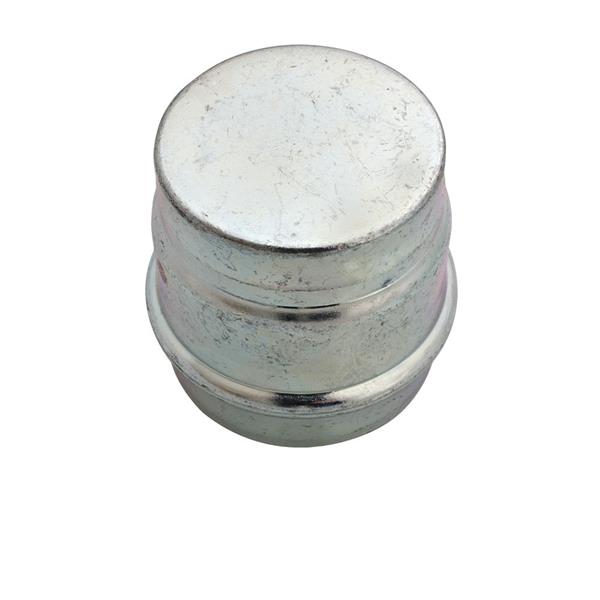

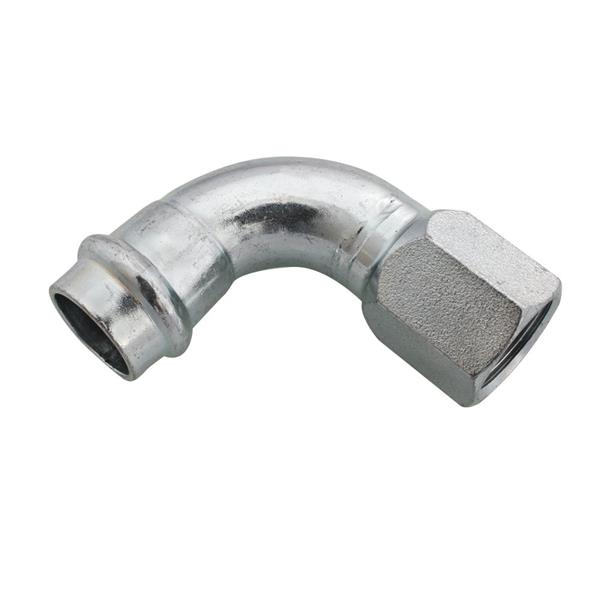

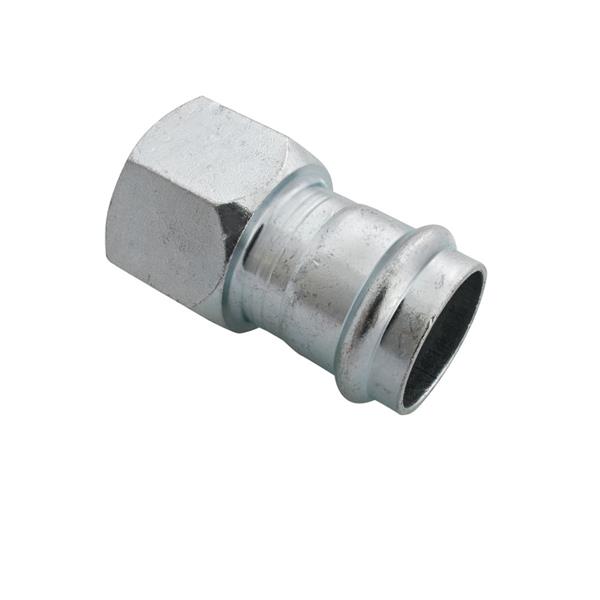

Conex >B< Press Carbon fittings are user friendly and very quick to install, leading to savings on labour costs. It also offers the advantage of a flame free installation, therefore posing no fire risk. Conex >B< Press Carbon is a versatile press fitting system for use on Carbon tubes in accordance with EN 10305-3.
Our >B< Press Carbon is installed, with a mechanical press tool with a compatible jaw with a >B< profile to fit each size of fitting required. When pressure is exerted through the press tool the joint is permanently made and the fitting cannot be dismounted or re-used. The >B< Press Carbon system eliminates the need for solder, adhesives or additional jointing materials. The >B< profile has the advantage of a 3 Point Press, two mechanical presses either side of the bead and one hydraulic press crimping the o-ring. This provides a more secure joint.
Pressing Indicator Feature
IBP has developed a unique pressing indicator, a specially designed EPDM O-ring. It has a reduced section in two positions causing leaks at low pressures when not pressed (from 0.1 to 5.0 bar). When the fitting is pressed, the o-ring material compresses, filling the gaps, securing a leak-free path.
|
Hydraulic working temperatures and pressures for water and gas:
|
|
Application
|
Pressure (bar)
|
Temperature
|
Medium
|
|
Drinking water installations to EN 806
|
10
16
|
95°C
30°C
|
Drinking Water to DWD
|
|
Chilled Water
|
10
|
5°C
|
Water
|
|
Solar Heating
|
3
|
-35°C to +130°C
200°C 20 h/a
180°C 60 h/a
|
50/50 glycol/water mix
|
|
Long Distance Water Heating
|
10
|
130°C
|
50/50 glycol/water mix
|
|
Rainwater installations
|
10
|
30°C
|
Rainwater
|
|
Compressed air installations (oil free)
|
10
|
30°C
|
Compressed air to ISO 8573.1 Class 1-4 (oil free)
|
|
Ship Building
|
10 16
|
95°C 30°C
|
Water
|
|
Vacuum
|
-0.8
|
Ambient
|
-
|
|
Domestic Fire Sprinkler Systems
|
16
|
Ambient
|
Water
|
|
Gas Installations DVGW - TRGI 1986/96
|
PN5/GT/1
|
-20°C to +70°C
|
Gases according to DVGW G260
|
|
Liquid Gas installations
|
PN5/GT/1
|
-20°C to +70°C
|
Gases according to DVGW G260
|
|
Fuel oil installations
|
PN5
|
-20°C to +40°C
|
-
|
Maximum Working Temperatures and Pressures for Water and Gas Applications
