Benson Cabinet Heaters

Benson Cabinet Heaters View Large Image

The Benson range of cabinet heaters combines innovative design with a proven four pass heat exchanger technology to provide a high efficiency cost effective and durable range.

The units may be specified for either free blowing applications or for use with ductwork.

Units are manufactured in accordance with ISO 9001 accreditation; all heater efficiencies are compliant with Part L2B of the 2010 Building Regulations.

Cabinet heaters are available as either gas or oil fired models.

Gas fired cabinet heaters are suitable for use with Natural Gas (G20), most units can also be specified for propane (G31)

Oil fired cabinet heaters are suitable for use with Class D gas oil (35 sec), most units can also be specified for Kerosene (28 sec oil)

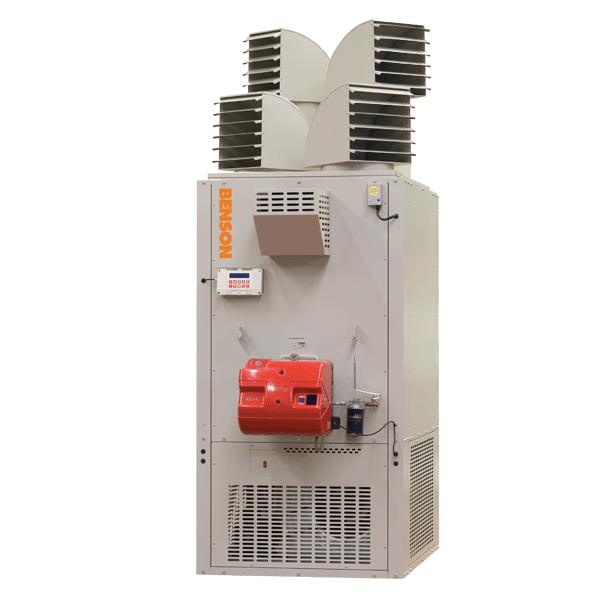

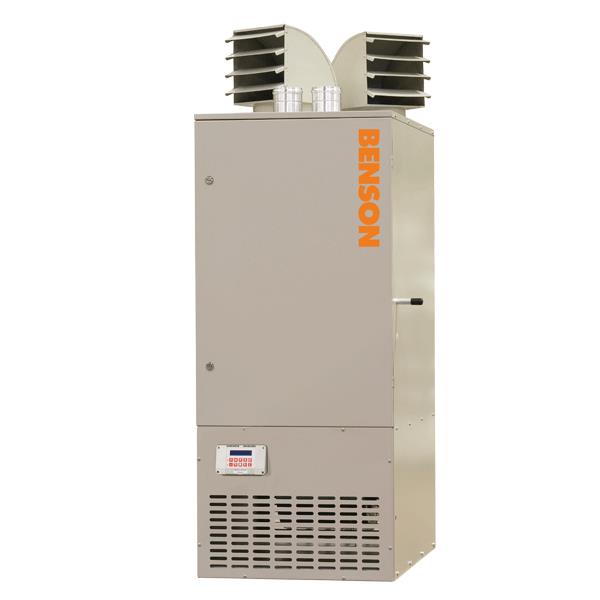

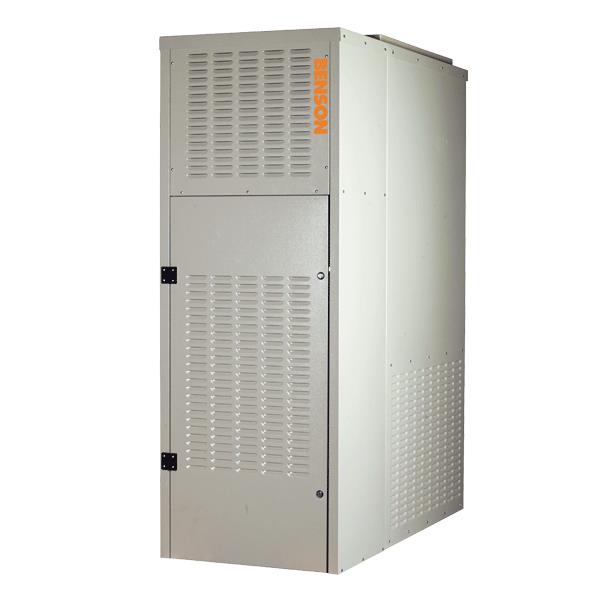

Vertical freestanding models are available from 29kW to 380kW

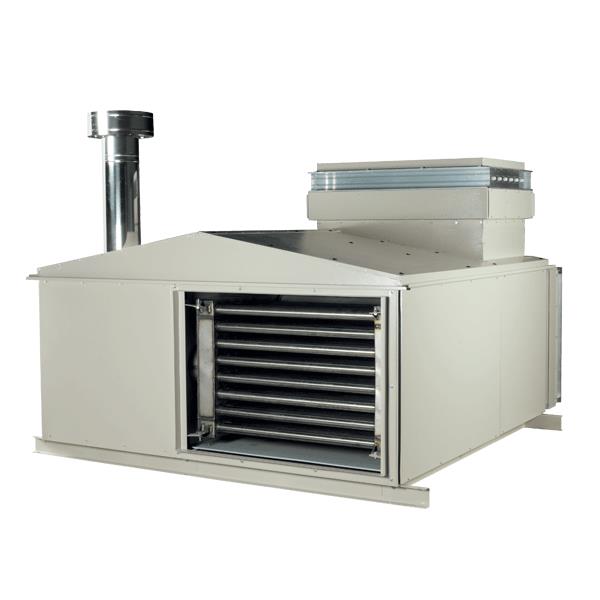

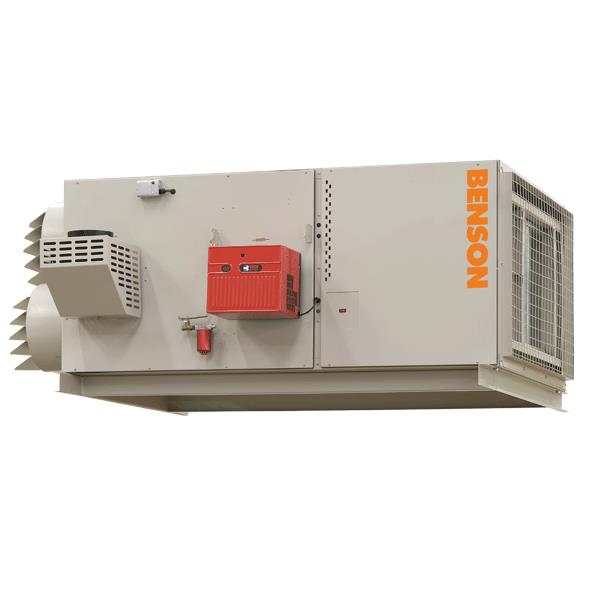

Horizontal and Down flow models from 58kW to 380kW

Cabinets are constructed from electro-zinc coated steel with an inner heat shield skin and an epoxy powder coat finish outer skin to form a rigid and durable casework.

 Gas fired units are fitted with a fully automatic forced draught burner complete with full safety controls to EN676 and the heaters are CE certified. A high/low burner is fitted as standard on model 375.

Oil fired units are supplied complete with a fully automatic burner complete with safety controls and factory fitted fire valve and oil filter. An additional external fire valve may be required in accordance with BS5410:Part2:1978.


  • High/low or fully modulating burners
  • Combustion air adaptors
  • Stainless steel tubular heat exchanger
  • Air inlet spigots
  • Air inlet filters
  • Manual or motorised inlet dampers
  • Up-rated fan motor for increased static pressure


  • Factories
  • Warehouses
  • Workshops
  • Showrooms
  • Greenhouses
