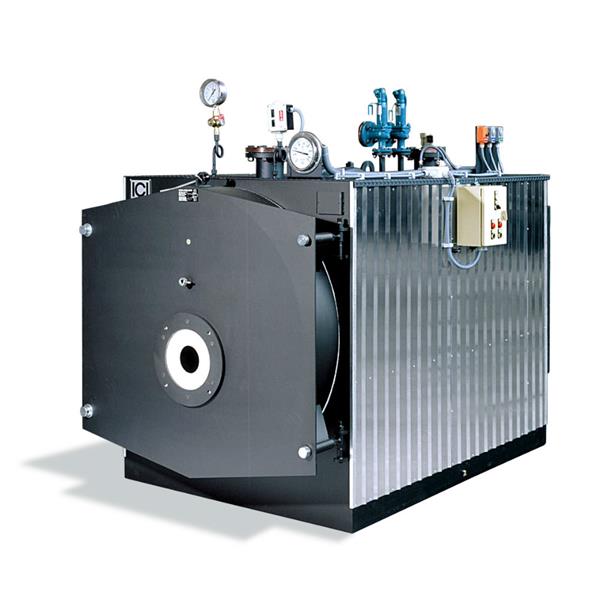

ASX hot water generator is MonoBloc with automatic operation, complete with all accessories needed for rapid commissioning. Manufactured with quality steel according to regulations in force and is welded with automatic submerged arc methods.
P265GH UNI EN 10028/2 and P275NH UNI EN 10028/3 quality steel boiler body welded and tested with methods approved and labelled CE in accordance with the PED 97/23/EC directive
Horizontal wetback combustion chamber with reverse flame, supported and guided
by a perforated stub to ensure full wet back design; has a curved surface beginning with ASX 2000 models
Flat tube plates with plasma drilled holes; front plate bent towards the combustion chamber, with head to head welding rather than angle throughout an angle, for models beginning with ASX 2000
Plate containment with flanged PN 16 or PN 40 EN 1092-1 connections for equipment operation; equipped with superior, inferior head hatch, lifting eye bolt.
P235GH UNI EN 10216/2 smoke tubes welded to tube plates, equipped with helical turbulators
Single steel sheet front door, thermally insulated refractive materials with high aluminium content, mounted on adjustable hinges, easily opened by hand wheel bolts without the need to remove the burner; equipped with light indicator for combustion control
Steel sheet posterior smoke box can be removed using equipped bolts in order to clean the smoke pipes; provided with cleaning door and chimney connection
Support built form carbon steel sections able to support the entire unit.
Embossed metal sheet upper walkway for accessories service, parts located above the boiler
High density, mineral wool mattress, adequate thickness thermal insulation, with embossed aluminium protective sheet mounted on a rectangular frame
Supplied accessories needed for automatic operation with mechanical and hydraulic assembly for all equipment and certifications, also in compliance with the PED 97 /23/EC Directive
Electrical wiring converging to a single centralized control panel, having silicone insulated wires inserted in PVC protective sheaths all subjected to final functionality test
